How to Use the Touch Up Combo Platinum KitUpdated a year ago

This is how to use the Touch Up Combo Platinum Kit. Follow these instructions to achieve the best results using a Touch Up Combo Platinum Kit.

The combo applicator is a unique touch up tool with dual applicators, a brush on one end and a pen on the other. The dual applicators enable more types of repairs to be performed successfully.

The Touch Up Combo Platinum Kit includes

• Color
• Clearcoat
• Primer
• Polishing compound
• Assorted sandpaper
• Wax and grease remover

You will need to provide all the other items listed in the instructions below.

BEFORE YOU START

Before any touch up paint project, always test your color with the test card included in the package. Apply the color and clearcoat onto the test card following the directions for painting and finishing below. Compare the color applied on the test card with the color on the vehicle to be painted. If the colors match, proceed with painting. Otherwise, kindly contact us immediately.

Paint is best applied in temperatures around 70 degrees Fahrenheit. Do not apply in direct sunlight.

PART 1 - Prepare the Surface: Cleaning, Sanding, Taping and Priming

Approximate time to complete*: 30-60 Minutes

Prior to beginning your touch up project, determine which side of the combo applicator you will be using.  Continue using the selected applicator for each step in the process, i.e. if you determine that you need to use the brush, use the brush throughout the steps.

The pen and brush ends serve different purposes. The pen is best for tiny stone chips, fine line scratches, and anything where you need to minimize the amount of paint you are applying. The brush end works best for slightly larger scratches where more paint is needed. We recommend practicing with both sides on the included test card to help determine which applicator is best for your project.

What you need for PART 1:

• Soap and water
• Sandpaper (included in Platinum KIt)
• Wax and grease remover (included in Platinum KIt)
• Tape (optional)
• Primer (included in Platinum Kit)

1. Clean the entire vehicle or part with soap and water to remove surface dirt. Make sure to rinse and dry the surface thoroughly.
2. Prepare the surface to be repaired using a sandpaper (see Sanding Instructions).
3. Clean again with soap and water. Then remove any remaining contaminants by lightly wiping the area with the wax and grease remover included in the Platinum Kit.
4. Tape off the area to be painted. This will help protect the area around the scratch when you are sanding or applying paint.
5. Assess the exposed areas of the damage. If the substrate is bare metal or plastic, you will need to apply the primer included in the Platinum Kit. If you have deep cracks, scratches, or gouges, we recommend a spot putty filler and primer.
6. If the area is already primed or not down to a bare substrate, you are ready to apply the first coat of color.

PART 2 - Paint the Surface

Approximate time to complete*: 30-40 Minutes

What you need for PART 2:

• Color (included in Platinum Kit)

Only proceed with PART 2 once PART 1 has been completed.

1. Shake well.

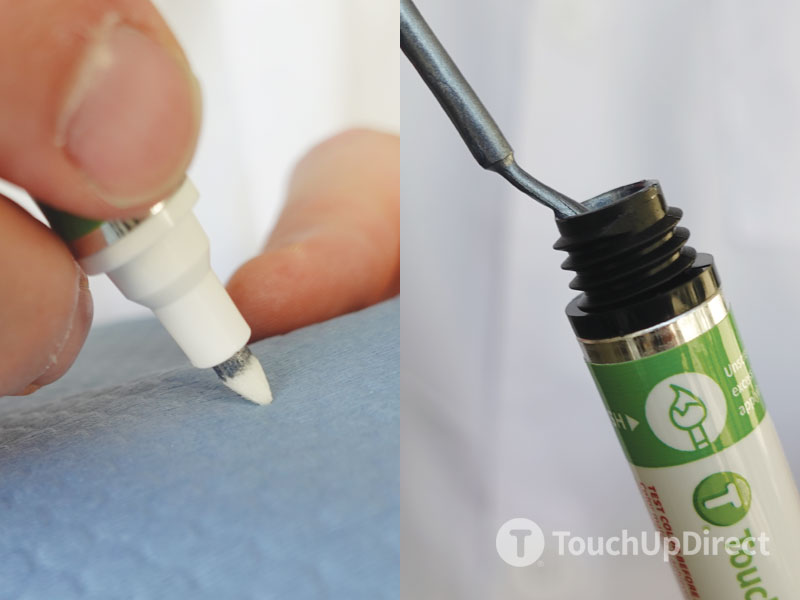

2. Determine which end of the combo applicator you will be using -- brush or pen. If you require a brush, unscrew the black brush cap of the applicator to open. If you need a pen, remove the white cap on the other end by twisting and pulling.

Using the Pen

If this is the first time using the pen, there will not be any color showing on the pen tip until you prime it.

1. Prime the pen by pressing the its tip down onto a soft surface several times. Use a firm but gentle force to avoid damaging the pen tip. Paint should saturate the tip within 3-5 pumps of the tip into the pen. If excess paint builds up on the pen tip, wipe with a soft cloth.
2. Lightly dab paint onto the area to be repaired. Apply one coat evenly with this dabbing motion and allow it to dry for at least 15 minutes. Avoid applying paint outside the area to be repaired.
3. Repeat step 2 until the repair area is evenly and thoroughly covered, usually 2-3 coats. Note: If your color is a tricoat, repeat step 2 using the applicator labeled “Midcoat”, also for              2-3 coats.
4. Replace the cap tightly when finished. Make sure the cap is secured well for proper storage of the combo applicator before your next use.

Using the brush

1. Remove excess paint by lightly dragging the brush along the inside opening as you remove it from the container.
2. Apply evenly over the damaged area. Allow to dry for 15 minutes. Avoid applying paint outside the area to be repaired.
3. Repeat step 2 until the repair area is evenly and thoroughly covered, usually 2-3 coats. Note: If your color is a tricoat, repeat step 2 using the applicator labeled “Midcoat”, also for             2-3 coats.
4. Screw cap on tightly when finished. Make sure the cap is secured well for proper storage of the combo applicator before your next use.

PART 3 - Finish the Surface

Approximate time to complete*: 30-45 Minutes

What you need for PART 3:

• Clearcoat (included in Platinum Kit)

Only proceed with PART 3 once PART 2 has been completed.

1. Shake clearcoat well.
2. Dab on a light, even coat of clearcoat. The first coat should have thorough, even coverage.  Allow to dry for 15 minutes.
3. Repeat step 2 for up to 4 total coats. Do not exceed 4 coats.
4. Clearcoat will be dry enough to handle within 30 minutes after last application. Allow to dry for a full 48 hours before wetsanding, polishing, or waxing.

* Actual implementation times may vary
